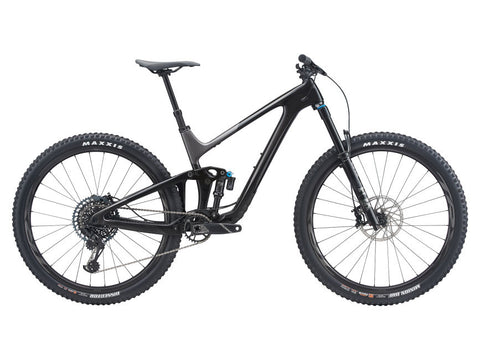

Extra travel, extra fun. From rowdy enduro runs to backcountry missions on steep, chunky singletrack, this new composite 29er builds on the Trance 29 platform with beefed up suspension and adjustable frame geometry.
This new member of the Trance family is designed with a longer travel suspension setup for added control on the most challenging trails. The full composite frame is engineered for 135mm of rear travel and 150mm up front. The Maestro rear suspension has a two-stage adjustable Advanced Forged Composite rocker arm with a trunnion-mount shock. The flip-chip equipped rocker arm lets you adjust frame geometry for your own riding style and terrain. To fine tune the ride, you can choose a steeper or slacker headtube angle (66.2 or 65.5 degrees) and seattube angle (77.9 or 77.2 degrees), which results in either a 30mm or 40mm bottom bracket drop. And it’s all built around 29-inch wheels for added stability on rugged terrain.
KEY PERFORMANCE FACTORS
29er confidence and control
Optimized Maestro suspension for 29-inch wheels with 135mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents. Added clearance for up to 2.5-inch tires.
Full Composite Construction
Mainframe and rear swingarm are engineered with proprietary material featuring high-performance carbon fiber and resin. Handcrafted monocoque construction makes it lightweight, stiff and compliant.
Adjustable frame geometry
Flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm BB drop) for faster, open terrain or high (66.2/77.9 head/seattube angle and 30mm drop) for slower, tighter singletrack.
This full-composite, fully capable trail bike is engineered with a longer-travel Maestro suspension system and progressive geometry that you can fine tune with a flip chip to suit your riding style and terrain. Here’s a look at the key technologies in the new Trance X Advanced Pro 29.
ADVANCED COMPOSITE TECHNOLOGY
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
ADVANCED FORGED COMPOSITE TECHNOLOGY
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
MAESTRO SUSPENSION TECHNOLOGY
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizes: S, M, L, XL
Colors: Carbon Smoke/Metallic Black/Chrome
Frame: Advanced-Grade Composite front and rear triangles, 135mm Maestro suspension, flip chip
Fork: Fox 36 Performance Elite, 150mm, GRIP2 damper, 15x110 Kabolt, 44mm offset, custom tuned for Giant
Shock: Fox Float DPX2 Performance, 185/55, custom tuned for Giant
Handlebar: Giant Contact SLR Trail, composite, 35
Stem: Giant Contact SL 35
Seatpost: Giant Contact Switch dropper with remote, 30.9
Saddle: Giant Romero SL, SST rails
Shifters: SRAM GX Eagle
Front Derailleur: N/A
Rear Derailleur: SRAM GX Eagle
Brakes: SRAM G2 R hydraulic (F:200mm, R:180mm)
Brake Levers: SRAM G2 R
Cassette: SRAM XG-1275 Eagle, 12-speed, 10x52
Chain: SRAM NX Eagle
Crankset: Truvativ Descendent 6k Eagle, DUB Boost, 30t
Bottom Bracket: SRAM DUB, press fit
Rims: Giant TRX-2 29 WheelSystem, 30mm inner
Hubs: Giant TRX-2 29 WheelSystem, Boost
Spokes: Giant TRX-2 29 WheelSystem, DBL technology
Tires: [F] Maxxis Minion DHF, tubeless, 29x2.5, WT, 3C, MaxxTerra, EXO, TR [R] Maxxis Dissector, tubeless, 29x2.4, WT, 3C, MaxxTerra, EXO, TR
Extras: Tubeless prepared
Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
- S 5’4” - 5’8”
- M 5’7” - 5’11”
- L 5’10” - 6’2”
- XL 6’2” - 6’6”
|LOW | HIGH||LOW | HIGH||LOW | HIGH||LOW | HIGH|
|A||SEAT TUBE LENGTH (inch)||16.9||16.9||18.3||19.5|
|B||SEAT TUBE ANGLE||77.2° | 77.9°||77.2° | 77.9°||77.2° | 77.9°||77.2° | 77.9°|
|C||TOP TUBE LENGTH (inch)||22.3 | 22.2||23.5 | 23.4||24.8 | 24.7||25.8 | 25.7|
|D||HEAD TUBE LENGTH (inch)||3.7||3.9||4.3||4.7|
|E||HEAD TUBE ANGLE||65.5° | 66.2°||65.5° | 66.2°||65.5° | 66.2°||65.5° | 66.2°|
|F||FORK RAKE (inch)||1.7||1.7||1.7||1.7|
|G||TRAIL (inch)||4.9 | 4.7||4.9 | 4.7||4.9 | 4.7||4.9 | 4.7|
|H||WHEELBASE (inch)||46.2 | 46.1||47.4 | 47.4||48.8 | 48.7||49.9 | 49.8|
|I||CHAIN STAY LENGTH (inch)||17.2 | 17.1||17.2 | 17.1||17.2 | 17.1||17.2 | 17.1|
|J||BOTTOM BRACKET DROP (inch)||1.6 | 1.2||1.6 | 1.2||1.6 | 1.2||1.6 | 1.2|
|K||STACK (inch)||24.3 | 24.1||24.4 | 24.2||24.8 | 24.6||25.2 | 25|
|L||REACH (inch)||16.8 | 17.1||18 | 18.3||19.1 | 19.4||20.1 | 20.4|
|M||STAND OVER HEIGHT (inch)||28.7 | 29.1||28.7 | 29||29.6 | 30||29.9 | 30.3|
|N||HANDLEBAR WIDTH (inch)||31.5||31.5||31.5||31.5|
|O||STEM LENGTH (inch)||1.6||1.6||2||2|
|P||CRANK LENGTH (inch)||6.5||6.7||6.7||6.7|
