Note : Due to increasingly high demand, all bicycle sales are subject to vary in shipping/delivery times.

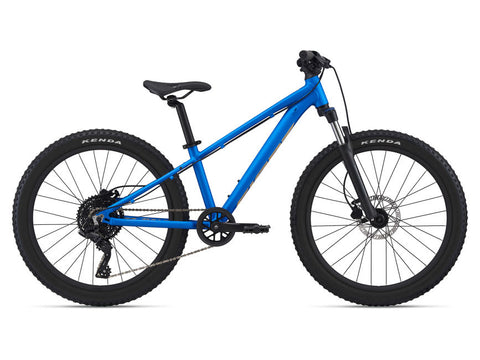

With its quickness, durability and lightweight feel, this reengineered STP helps young riders get rolling on trails, pump tracks or bike park terrain. Made with a gusset-free ALUXX aluminum frame and 24-inch wheels, it has a low saddle height and taller front end so they can rail corners and stick their landings. Disc brakes help them stop on a dime, and this series is available with either a suspension fork or a rigid fork to suit different riding styles and terrain.
KEY PERFORMANCE FACTORS
Trail Inspired Geometry
Lightweight, strong and durable aluminum frameset with a longer top tube, tighter rear triangle and slacker head angle delivers confident, agile handling on dirt jumps, trails or street riding sessions.
Quick and responsive
Frame is designed for 24-inch wheels with a low saddle height and taller front end for quick, confident handling.
Maximum control
Powerful disc brakes and plush suspension fork with a lockout (available on some models) option puts maximum control in the rider’s hands. Grippy, high-volume 2.6” tires are ideal for multi-surface riding on streets, trails or bike parks.
HIGHLIGHTS
The new STP 24 kids' bike is built on lightweight and durable ALUXX framesets with updated geometry to give young riders more confidence and control. It comes with an 80mm suspension fork or rigid fork, and is equipped with disc brakes and grippy, high-volume tires. Here’s a look at some of the key technologies on the STP 24.
Sizes: one size
Colors: Azure Blue
Frame: ALUXX-Grade Aluminum
Fork: SR XCT L24, coil, 80mm, lockout
Shock: N/A
Handlebar: Giant Sport, alloy, 31.8
Stem: forged alloy, 0-degree
Seatpost:alloy, two-bolt, 27.2x300
Saddle: Giant Jr. Sport
Pedals: platform
Shifters: Shimano REVOSHIFT
Front Derailleur: N/A
Rear Derailleur: Shimano Altus
Brakes: Tektro HD-J285
Brake Levers: Tektro HD-M276
Cassette: microSHIFT Advent, 12x42
Chain: KMC Z8.3
Crankset: alloy forged, 30t
Bottom Bracket: cartridge
Rims: Giant 24", alloy, 28mm inner width
Hubs: Giant Disc, 28h, QR, alloy, disc
Spokes: stainless, 14g
Tires: Kenda Karma, 24x2.2
Weight : The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
ALUXX ALUMINUM TECHNOLOGY
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
-
- 4’1” - 4’9”
| ONE SIZE | ||
|---|---|---|
| B | SEAT TUBE ANGLE | 73.0° |
| C | TOP TUBE LENGTH (inch) | 19.5 |
| D | HEAD TUBE LENGTH (inch) | 4.1 |
| E | HEAD TUBE ANGLE | 69.0° |
| H | WHEELBASE (inch) | 38.5 |
| I | CHAIN STAY LENGTH (inch) | 16.1 |
| K | STACK (inch) | 20.6 |
| L | REACH (inch) | 13.2 |
| P | CRANK LENGTH (inch) | 5.5 |
Note: In Store Pick Up Only
