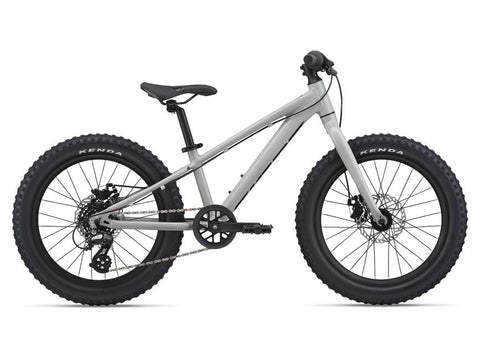

With a lightweight aluminum frame, smooth front suspension, smaller 20-inch wheels and geometry that’s designed specifically for young riders, the new STP can be a first step toward playful adventures in the dirt. Versatile enough to ride on streets, parks or trails, it offers kids a confident, controlled ride to help them build their skills. The 80mm suspension fork soaks up bumps, and powerful disc brakes help them negotiate steep descents. It also features kid-friendly components, including shorter reach brake levers and a comfortable saddle.
KEY PERFORMANCE FACTORS
Versatility For Dirt or street
Lightweight, strong and durable aluminum frameset is designed to go from street riding to bike parks or trails.
Kid-friendly design
Frame geometry is designed specifically for young riders with 20-inch wheels, a low saddle height and taller front end for a stable ride quality.
Maximum control
Powerful disc brakes and plush suspension fork with a lockout option (available on some models) puts maximum control in the rider’s hands.
HIGHLIGHTS
The new STP 20 kids' bike is built on a lightweight and durable ALUXX frameset with updated geometry to give young riders more confidence and control. It comes with an 80mm suspension fork or rigid fork, and is equipped with disc brakes and grippy, high-volume tires. Here’s a look at some of the key technologies on the STP 20.
Sizes: one size
Colors: Concrete
Frame: ALUXX-Grade Aluminum
Fork: alloy, rigid
Shock: N/A
Handlebar: Giant Sport, alloy, 31.8
Stem: forged alloy, 0-degree
Seatpost: alloy, 27.2x250
Saddle: Giant Jr. Sport
Pedals: platform
Shifters: Shimano REVOSHIFT
Front Derailleur: N/A
Rear Derailleur: Shimano Altus
Brakes: mechanical disc
Brake Levers: alloy, junior
Cassette: Shimano CS-HG200, 12x32
Chain: KMC Z7
Crankset: alloy forged, 30t
Bottom Bracket: cartridge
Rims: Giant 20", alloy, 28mm inner width
Hubs: Giant Disc, 28h, QR, alloy, disc
Spokes: stainless, 14g
Tires: Kenda Karma, 20x2.6
Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
ALUXX ALUMINUM TECHNOLOGY
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
-
- 3’9” - 4’3”
| ONE SIZE | ||
|---|---|---|
| B | SEAT TUBE ANGLE | 73.0° |
| C | TOP TUBE LENGTH (inch) | 17.7 |
| D | HEAD TUBE LENGTH (inch) | 4.1 |
| E | HEAD TUBE ANGLE | 69.0° |
| H | WHEELBASE (inch) | 34.9 |
| I | CHAIN STAY LENGTH (inch) | 14.4 |
| K | STACK (inch) | 17.6 |
| L | REACH (inch) | 12.3 |
| P | CRANK LENGTH (inch) | 5 |
